Plastic products has been used widely, and waste plastic can be seen everywhere. It has seriously affected our environment on two aspects, such as visual pollution and potential hazards. Visual pollution means that aesthetic perception on living city affected by scrap plastic in everywhere.

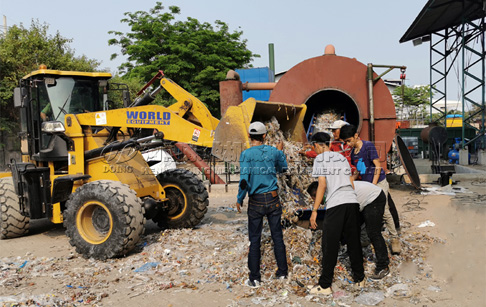

waste plasticsWaste plastic harm to animals

Potential hazards mainly refers to degradation-resistant of waste plastic affecting on absorbing of nutrients and water by crop, reducing the production; and otherwise, animals will be die if eats it unconscious. Recycling and utilization of waste plastic is increasingly becoming an important aspect for environmental protection.

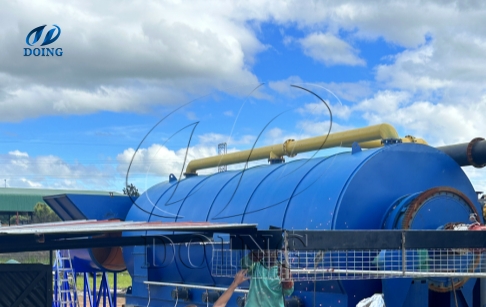

plastic pyrolysis plantWaste plastic pollution

Waste plastic to fuel oil plant has supplied a new solution on disposal of waste plastic. So is this new waste plastics processing solution easy to implement? Henan Doing Mechanical Equipment Co., Ltd's waste plastic to fuel oil plant is very user-friendly and easy to operate. The specific plastic to oil process is as follows:

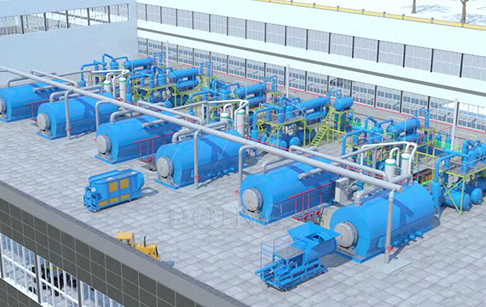

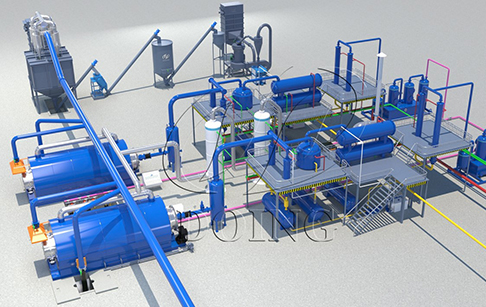

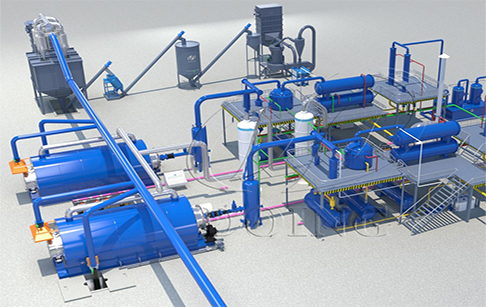

waste plastic pyrolysis plantWaste plastic to fuel oil plant process

When using this waste plastic to fuel oil plant to dispose waste plastics, the pre-treated plastics will firstly be conveyed to the moving horizontal pyrolysis reactor through feeder system. Then the plastics will take a series of pyrolysis reactions under the action of catalyst. Finally we can get pyrolysis oil and carbon black. Both of them are available energy.

plastic pyrolysis plantFinal products from waste plastic to fuel oil plant

For example, the plastic pyrolysis oil can be widely used as fuel oil in industries such as steel and iron and boiler factories, ceramics, power or chemical industries or hotels, restaurants etc. or used for generators to get electricity. The carbon black can be used for making construction bricks with clay, or used as fuel.

 Technical parameter of waste plastic to fuel oil plant

No. Items Contents
1 Equipment type DY-1-6 DY-1-8 DY-1-10
2 Raw material Waste plastic Waste plastic Waste plastic
3 Structural form Horizontal rotation Horizontal rotation Horizontal rotation
4 24-hour Capacity 6 ton 8 ton 10 ton
5 Oil yield 2.7-3.3ton 3.6 -4.4ton 4.5 -5.5ton
6 Operating pressure Normal Normal Normal
7 Material of pyrolysis Reactor Q245R Q245R Q245R
8 Thickness of pyrolysis Reactor 16mm 16mm 16mm
9 Rotate speed of pyrolysis Reactor 0.4turn/minute 0.4turn/minute 0.4turn/minute
10 Total power 19KW 19KW 19KW
11 Mode of cooling Water cooling Water cooling Water cooling
12 Cooling area of condenser 100sqm 100sqm 100sqm
13 Kind of transmission Internal gear drive Internal gear drive Internal gear drive
14 Noise dB(A) ≤85 ≤85 ≤85
15 Size of Reactor(D×L) 2200×6000 2200×6600 2600×6600
16 Working form Intermittent operation Intermittent operation Intermittent operation
17 Delivery time 20days 20days 20days
18 Weight 27T 30T 35T

Prepared by customer about waste plastic to fuel oil plant

No. Item Consumption
1 Coal(for choice) 500kg/day
2 Wood(for choice) 800kg/day
3 Natural gas(for choice) 100-150kg/day
4 Oil(for choice) 300-350kg/day
5 Electricity 244kwh/day
6 Water(recycled) 60㎥ /month
7 Total power 19kw
8 Land area 35m*15m

Final product and application of waste plastic to fuel oil plant

After processed by waste plastic to fuel oil plant, you can get fuel oil and carbon black. The following are the function of products from waste plastic to fuel oil plant.

plastic pyrolysis plant Fuel oil application

Fuel oil: The main product-fuel oil produced by our waste plastic to fuel oil plant is widely used for industrial and commercial purposes.With the heating value 10592.48 Lcal/Kg,this fuel oil is a kind of good heating fuel which can be applied for boiler factory,cement factory,glass factory and steel mill,ect.

carbon black application Carbon black application

Carbon black: Is used as raw material or main ingredient in many industries and the chemical structure of carbon black strengthens,lengthens the endurance,and improves the coloring features of the materials.It is more price-efficient to be used as an ingredient listed.

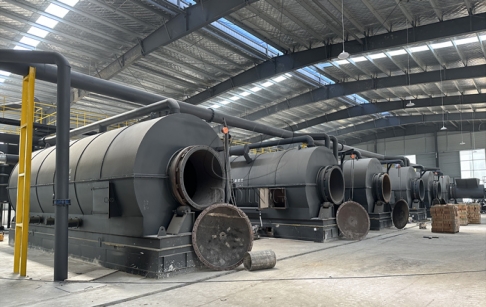

waste plastic pyrolysis plant Waste plastic to fuel oil plant project cases

So far, Henan Dongxing Machinery Equipment Co., Ltd.'s waste plastic to fuel oil plant has successfully installed and operated in more than 50 countries and regions, such as Italy, Macedonia, Iran, Egypt, Mexico, Ecuador, Haiti, Congo, Uganda, Nigeria, India, Pakistan, Thailand, Malaysia. , Bangladesh, Guatemala and other parts of the world, by domestic and foreign customers alike.It is your best choice for investing in waste plastic to fuel oil plant !
